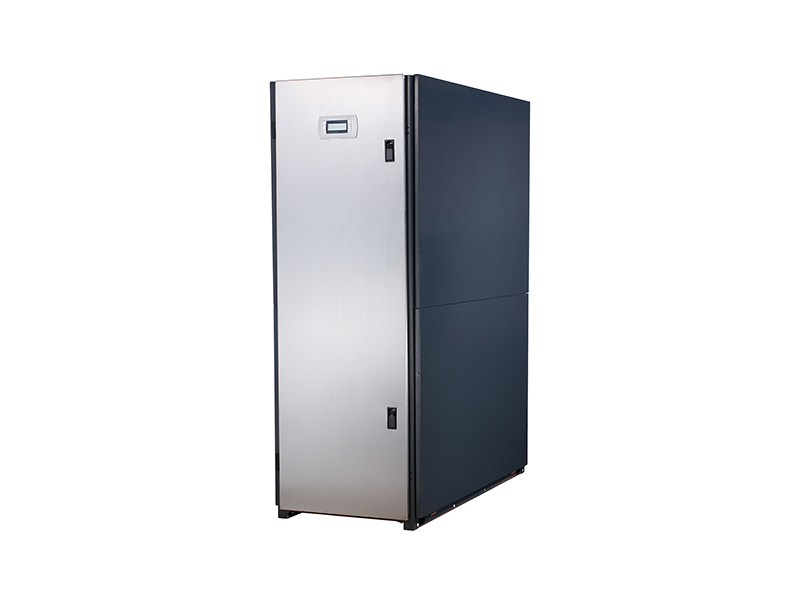

Dante offers OEM R410A commercial geothermal heat pumps designed for applications where operational stability, proven technology and long service life are key priorities.
· GS60 – Heating-only model
· GS60/B – Heating & cooling model
These units deliver the full benefits of renewable ground-source energy, supporting low-carbon building solutions with consistent performance and dependable operation.
Proven constant-speed technology
Unlike inverter-driven systems that prioritise modulation, the GS60 adopts a constant-speed compressor platform based on well-established technology.
This approach offers clear advantages for large-capacity systems:
· Stable and predictable operation
· High reliability under continuous load
· Simple control logic
· Low failure risk and reduced lifecycle cost
· Minimal maintenance requirements
For commercial projects where systems run for long hours at steady load, this proven design remains a trusted solution.
Efficient and reliable renewable heating
Compared with conventional heating and cooling systems, the GS60 geothermal heat pump provides:
· Significantly higher system efficiency
· Lower operating costs
· Reduced carbon emissions
· Long-term operational stability
The system is especially suitable for applications such as:
· Commercial buildings
· Industrial facilities
· District or centralized heating systems
· Retrofit projects requiring robust, non-complex solutions
Heat pump | Type | GS60 | |
Dimensions,weights,connection dimensions | |||
Dimensions | HxWxD | 1620x590X1270 | |
Weight | kg | 350 | |
Refrigerant | Type | R410A | |
Pipe connector-Indoor side | Inch | G21/2” | |
Pipe connector-Outdoor side | Inch | G21/2” | |
Evaporator | Type | Brazed plate heat exchanger | |
Condenser | Type | Brazed plate heat exchanger | |
Compressor | 2 x Copeland Scroll | ||
Performance Heat pump | |||
Heat output | at B0/W35(1) | kW | 62.6 |
Power consumption | kW | 16.2 | |
Performance factor | 3.86 | ||
Indoor side volume flow | m3/h | 10.8 | |
Outdoor side volume flow | m3/h | 14.7 | |
Heat output | at W10/W35(2) | kW | 90.2 |
Power consumption | kW | 15.88 | |
Performance factor | 5.68 | ||
Indoor side volume flow | m3/h | 15.5 | |
Outdoor side volume flow | m3/h | 21.3 | |
Power | Type | Triple phase | |
ErP Level(35℃) | A++ | ||
Energy efficiency ns (35℃) | 151% | ||
Rated heat output Prated (35℃) | kW | 70 | |
Sound power level (3) | dB(A) | 69 | |
(1)B0/W35=Brine water inlet temperature 0℃,heating flow 35℃ | |||
(2)W10/W35=Well water inlet temperature 10℃,heating flow 35℃ | |||
(3)The Sound power level is tested by EN12102 | |||
Data Sheet Download:
